Autodoser Manifold Replacement Guide

Please follow the steps below carefully. If at any point you feel unsure, we recommend contacting a qualified technician.

⚠️ Before You Begin

• Turn off power to the Plunge, at the power source.


• Shut off water flow to the system.


• Place a towel or small container underneath to catch any remaining water.

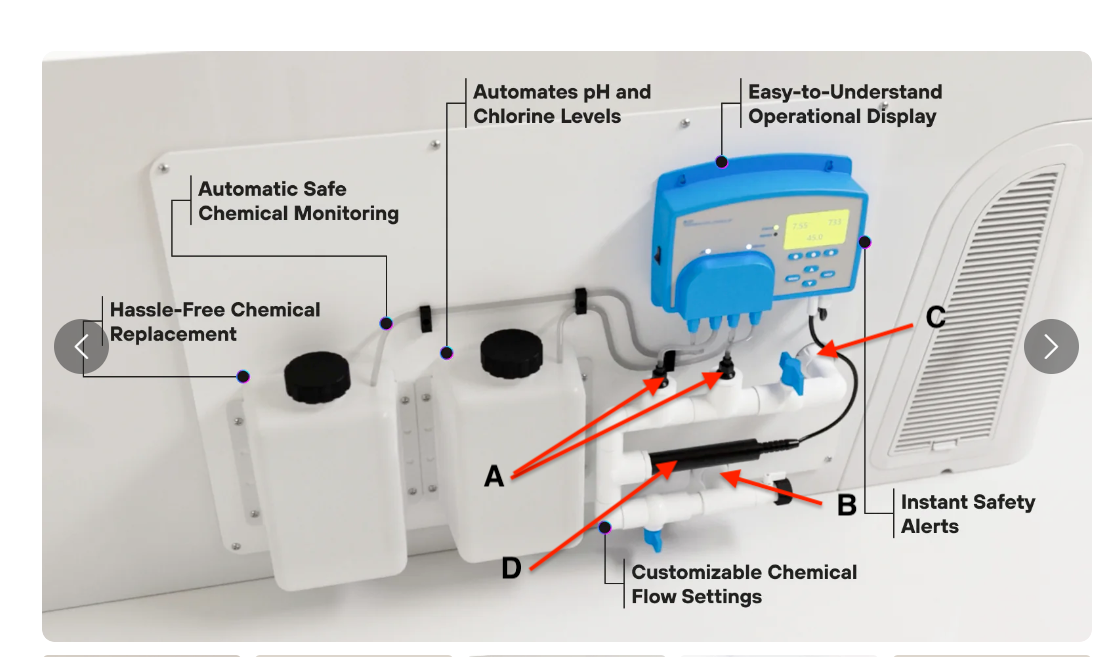

Step 1: Remove the Injectors (Label A on Diagram)Injectors

• Locate the injectors labeled A.


• Unscrew each injector by turning counterclockwise.


• Set them aside in a safe place.


• Inspect the small O-rings and ensure they are clean and undamaged.



Step 2: Remove the Existing Manifold (Labels B & C on Diagram)

• Locate the two union nuts labeled B and C.


• Turn both union nuts counterclockwise to loosen.



If Your Unit Has a Hair Catcher:

• Remove the union nut located directly in front of the hair catcher.



If Your Unit Does Not Have a Hair Catcher:

• Remove the two visible union nuts securing the manifold.


• Once loosened, carefully slide the manifold out of position.



Step 3: Install the New Manifold

• Position the new manifold in place.


• Reattach the union nuts (B & C) by turning clockwise.


• Hand-tighten until snug.

  ⚠️ Do not use tools or overtighten.



Step 4: Reinstall the Injectors (Label A on Diagram)

• Thread the injectors back into the new manifold.


• Turn clockwise until snug.


• Hand-tighten only.



Step 5: Reinstall the Probe (Label D on Diagram)Setup

• Insert the probe into the designated port labeled D.


• Hand-tighten gently.


• ⚠️ Do not over tighten, as this may damage the fitting.



Final Steps

• Slowly restore water flow.


• Check all connection points for leaks.


• Restore power to the controller.


• Confirm the system is operating normally.
