Steps to Remove the Fan and Replace for All-In Gen2 units only

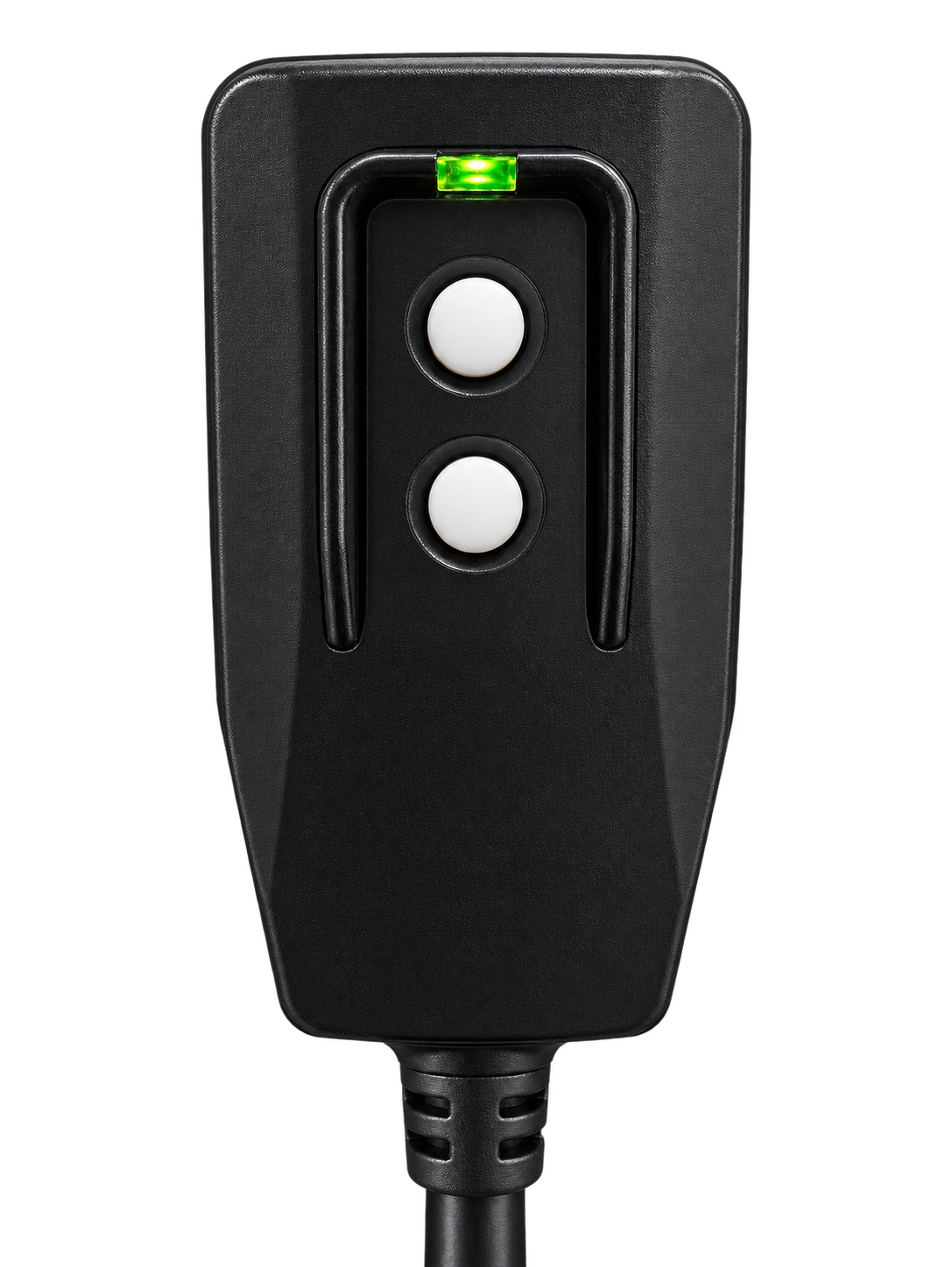

1. Make sure power to the unit is off, to do this pause the unit and wait 15 seconds before

pushing the bottom button of the GFCI.

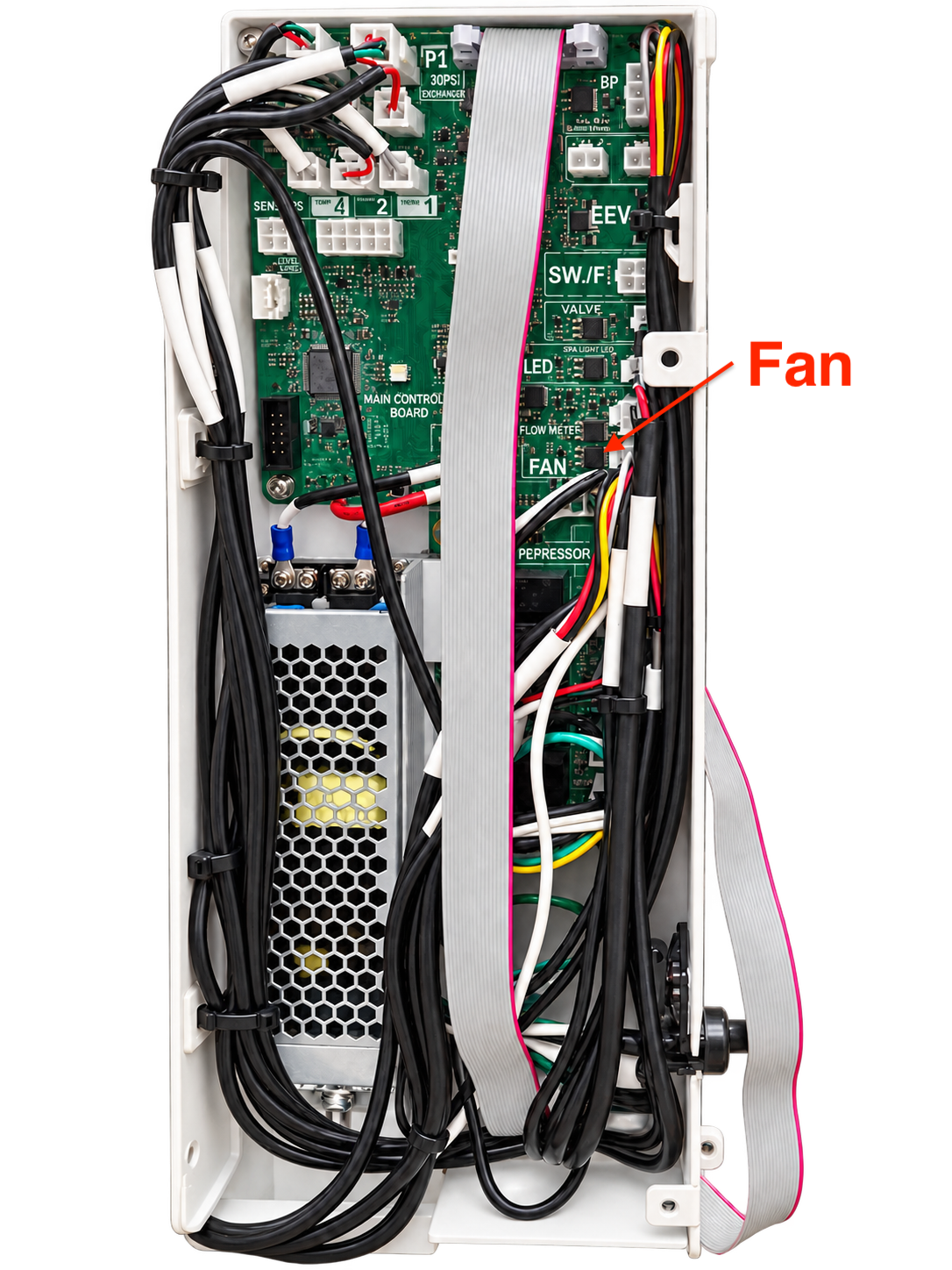

2. Open the electrical box and unplug the Fan from the electrical board (Tech or customer

will have to cut the zip ties holding the wires together.)

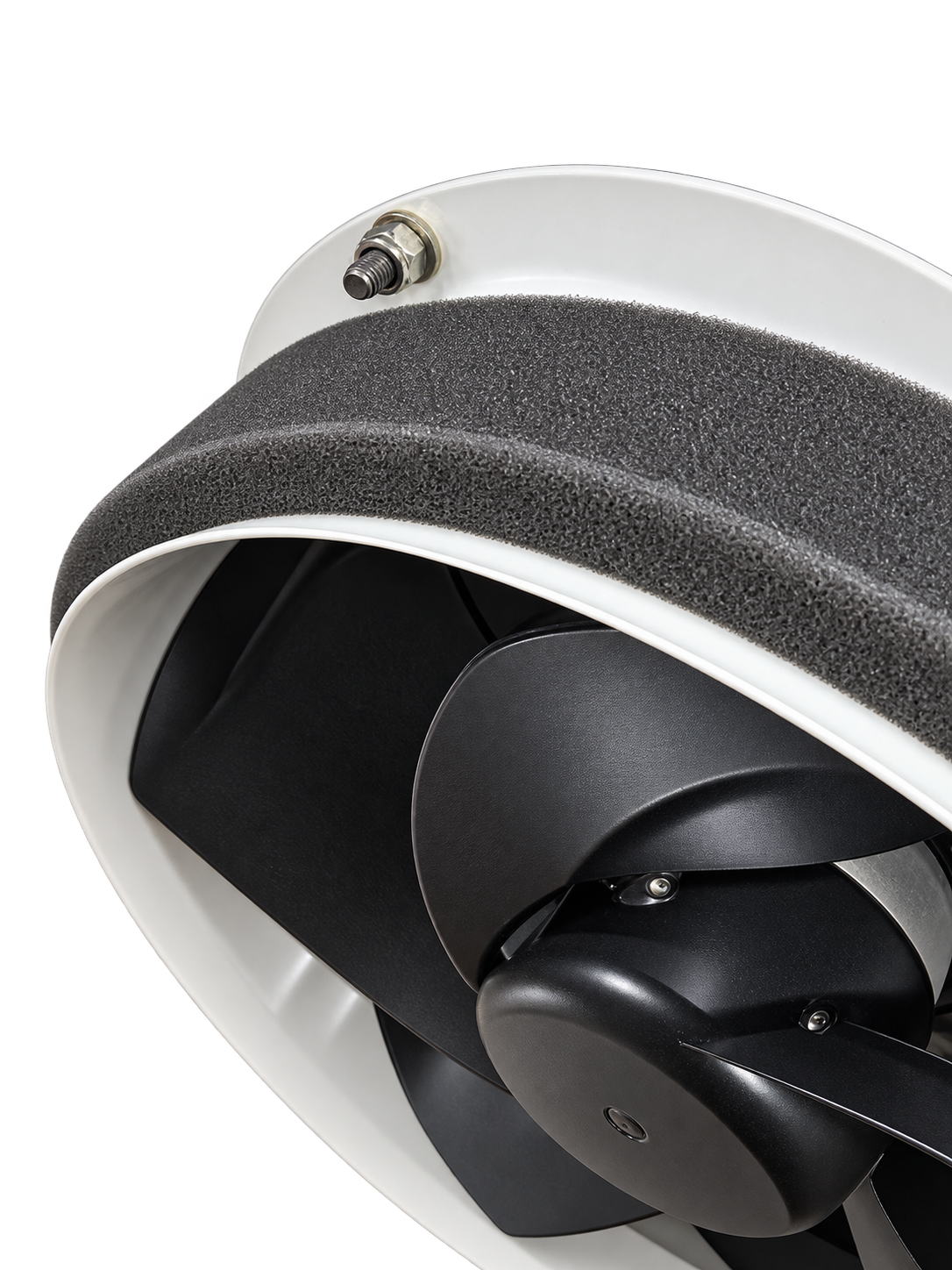

3. Using a 13mm socket wrench, remove the four 13mm nuts from the fan ring, there

should be two up top and two on the bottom.

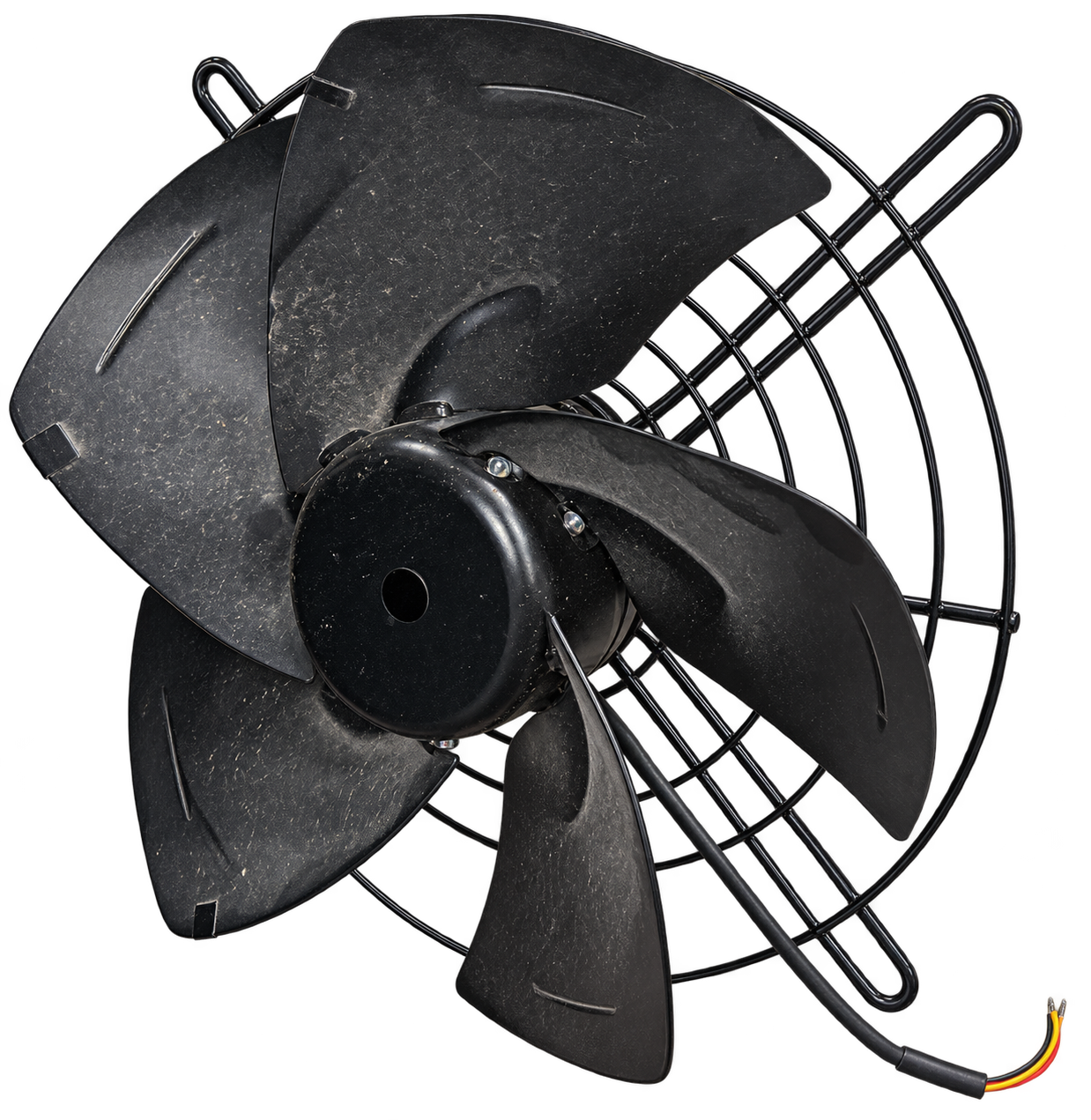

4. Pull off the fan ring, the metal mesh that the fan is connected to should come out as well.

5. Remove the old metal mesh from the ring and place the new mesh into place.

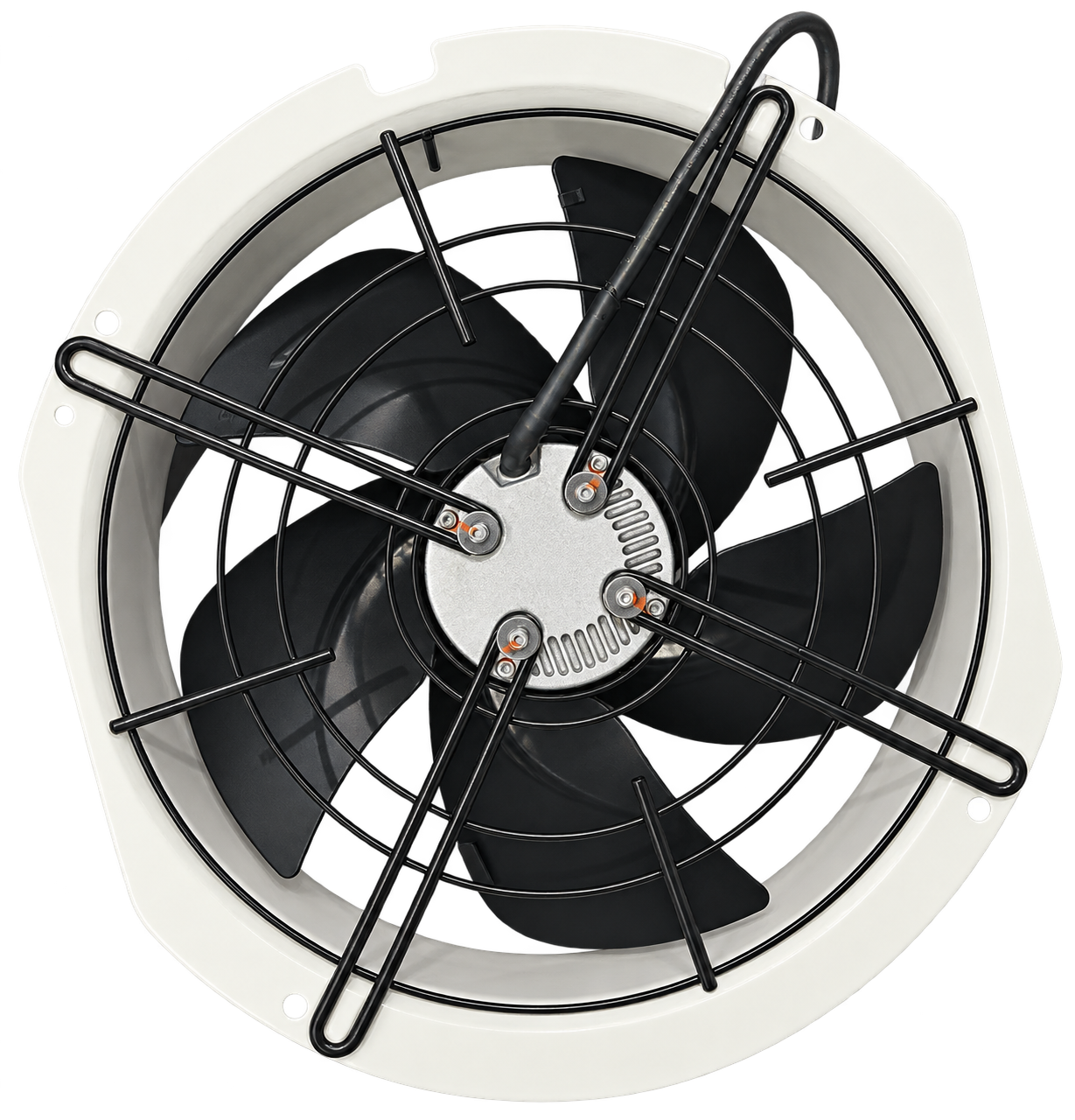

6. Line up fan wire to the opening within the fan ring and place ring back into place with the

metal fan grid behind.


7. Connect the fan to the electrical board, zip tie the wires, and close the electrical box.
